The MBX Surface preparation system is a world leader in wire brush surface preparation. Available in either Pneumatic or electric operation the MBX system is different from any other surface preparation in that its flexible belts are inserted loosely into a cage like adaptor system. The centrifugal force created by rotation causes the belt to tighten and work as if suspended on an air cushion. The vibration of the bristles when striking the surface is adsorbed by the air cushion. The bristles re-strike the target surface at rest without vibration. This achieves the maximum kinetic energy.

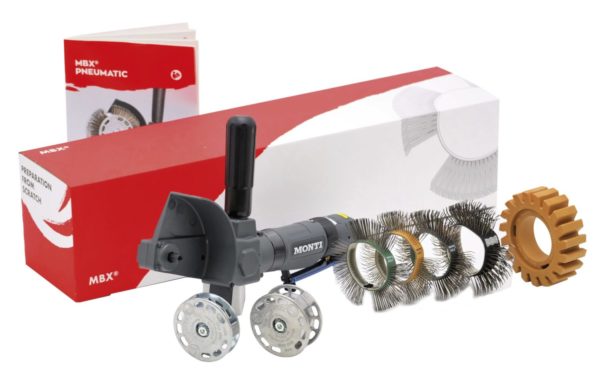

Whats in the Box?
MBX Pneumatic Drive unit, MBX Adptor System 23mm, MBX Adaptor System 11mm, 1x23mm Coarse Belt, 1x11mm Coarse Belt, 1x11mm medium Belt, 1x11mm Fine Belt, 1 Zinyl Zapper Wheel. Packed in Cardboard Box.
Tech Spec’s
Length (without air connector) 300 mm
Height (incl. handle) 180 mm
Width 80 mm
Weight 1,3 kg I 2.9 lbs
Belt diameter (outer) 100 mm
Idle speed 3500 rpm
Vibration 1 m/sec2
Required Air Pressure 6.2 bar l 90 psi
Required hose diameter 9.5 mm l 3/8”
Average air consumption 17.5 cfm | 0,5 m3
/min
Sound pressure level 83 dB(A)
